1116/1226 Series – Gate Valve ANSI Class 150

Size:

1116 – 1/2” through 10”
1226 – 1/2” through 2”

Pressure Rating:

1116 – ANSI Class 150
1226 – 200 psi

Ends:

1116 – 150# Flanged
1226 – NPT

Body Materials:

316 Stainless Steel

Disc & Bonnet Materials:

316 Stainless Steel

Seat Materials:

Metal

Category:

Description

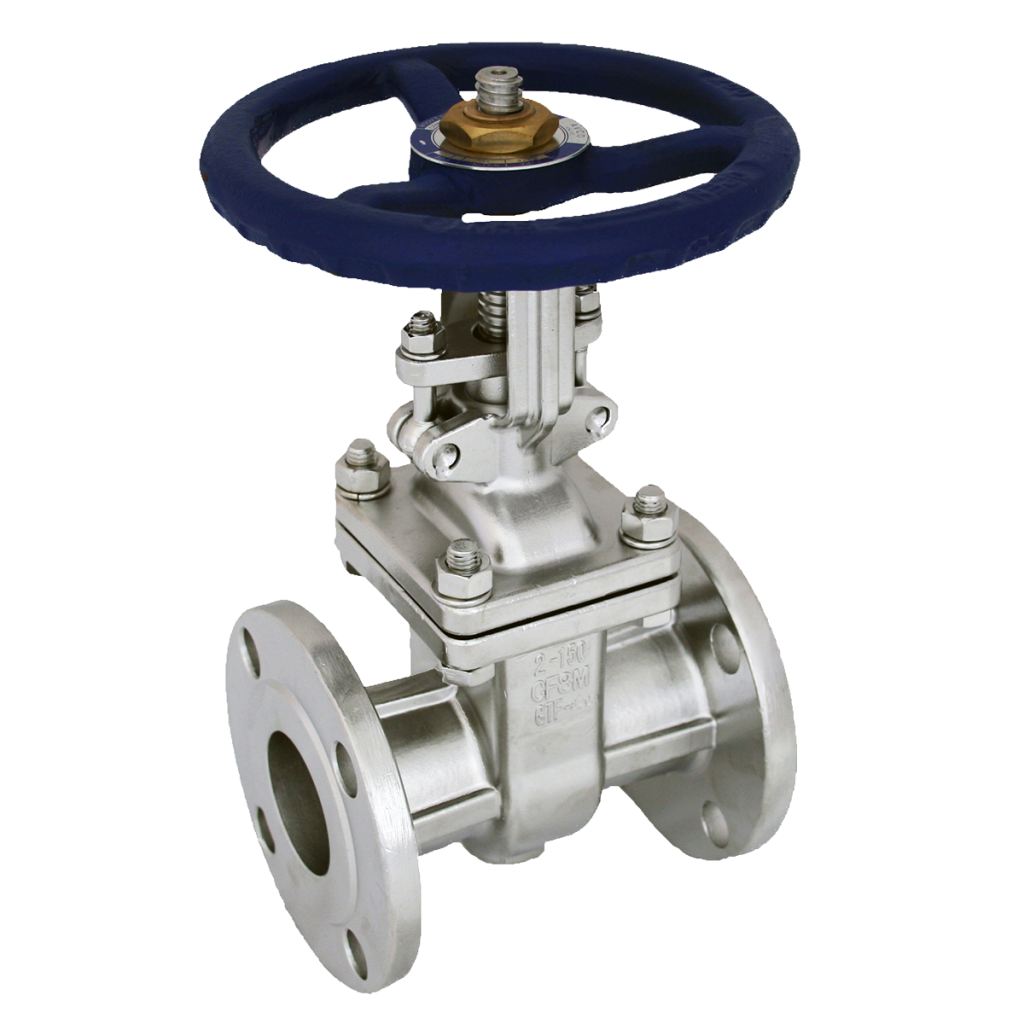

There are two models of AVCO gate valves to choose from; the AVCO 1116 Series and 1226 Series. The AVCO 1116 Series is available with 150# ANSI flanged ends, a metal seat and bolted bonnet. The AVCO 1226 Series comes with NPT ends, a screwed bonnet and a non-rising stem and is rated to 200 psi. Both valves are stocked in 316 stainless steel (CF8M). The 1116 Series is available upon request in a variety of alloys including Duplex 2205, Super Duplex 2507, Hastelloy C and AL6XN among others. The flanged gate valves are available from ½” through 10” and the threaded end gate valves are available from ½” through 2”. These AVCO gate valves are an economical choice for use in oil & gas, steam, food processing or chemical applications.

1116 Series Literature

1226 Series Literature
