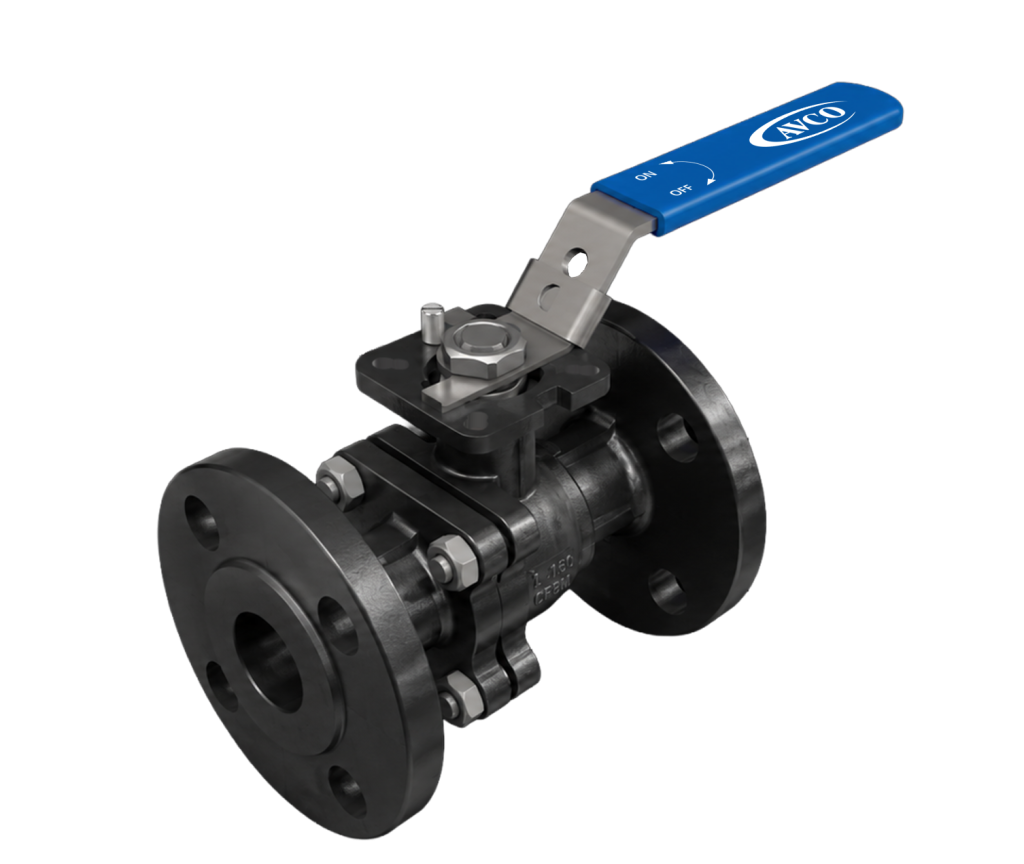

900 Series – Economy 2 Piece, Direct Mount, Full Port, Flanged Ball Valve

Size:

1/2” through 8”

Pressure Rating:

ANSI Class 150

Ends:

150# Flanged
PN16

Body Materials:

316 Stainless Steel, Carbon Steel

Ball & Stem Materials:

316 Stainless Steel, 304 Stainless Steel

Seat Materials:

15% Glass Filled Teflon

Standards:

ASME B16.34, API 598

Category:

Description

The AVCO 900 series ball valve is an economy flanged two 2-piece cast ball valve available in stainless steel 316 (CF8M) and Carbon steel (WCB) and comes with ANSI Class 150 integral flanges that meet ASME B16.5. The valve meets the requirements of API 598, API 607, API 608 and ASME B16.34. The 900 Series ball valve features a stem with blow-out proof prevention and full port ball giving minimal pressure drop during full open operating conditions. All valves come standard with an ISO 5211 direct mounting pad to accommodate most actuators without the additional cost of a mounting kit. With sizes from ½” through 8” in stock, orders can be shipped within one day when required. This is a competitively priced flanged ball valve that can be used in the chemical, food processing, oxygen, steam, water, oil and gas industries.

900 Series Literature

900 Series Specification
