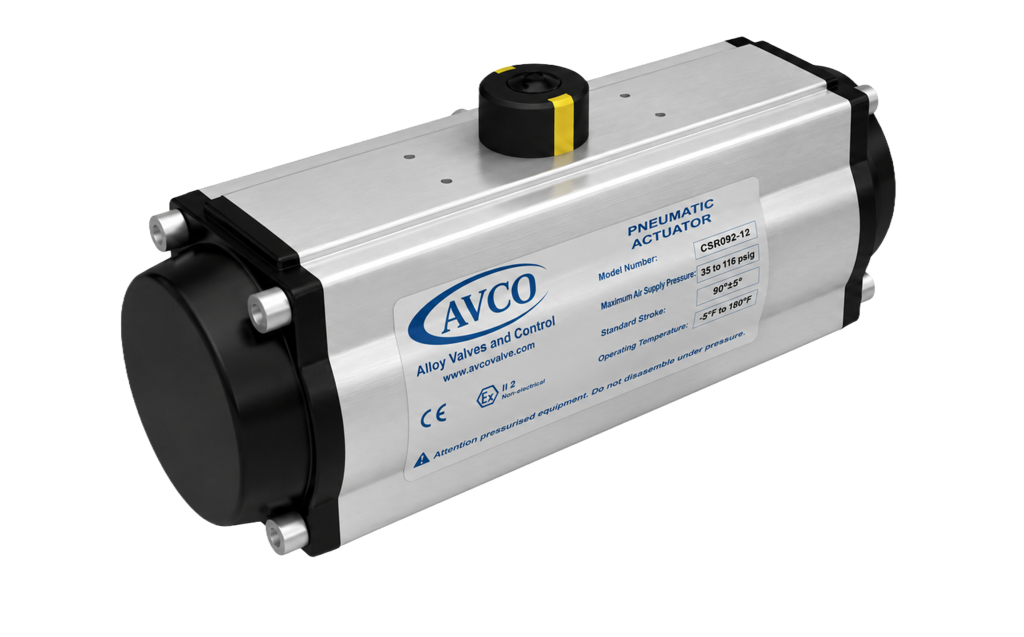

Pneumatic Actuators – Quarter Turn, Double Acting or Spring Return

Torque Rating at 80 psig:

Double Acting: 195 through 28,500 in.lbs
Spring Return: 50 through 16,500 in.lbs

Temperature Range:

-30° through 300° F

Supply Pressure:

35 through 150 psig

Operation Speed:

0.3 through 6 seconds (Model Dependent)

Features:

Adjustable Travel Stops, NAMUR Solenoid Mount, ISO 5211 Mount, Position Indicator, Blow-Out Proof Pinion

Category:

Description

The highly dependable AVCO pneumatic actuators come in two configurations – double acting and spring return. The actuators share the same design with the only exception being that one model has springs and the other model does not. This allows for the easy change over between double acting and spring return in the field or at the factory. They can also be switched from the standard CCW rotation to CW rotation. The actuators have an extruded aluminum body with die-cast aluminum end caps. A position indicator with NAMUR slot sits on top of the actuator body to allow for visual indication or mounting of a positioner or limit switch and the drive/mount pad meets ISO 5211. The actuator air inlet and exhaust ports are designed for direct mount NAMUR solenoids. Buna body seals come standard, but Viton seals are available for higher temperature applications and LNBR seals are available for cryogenic applications. Internal features include a blow-out proof pinion, dual opposed rack pistons and adjustable travel stops. The double acting actuators have a linear torque output for smooth operation throughout the valve cycle. As a default, AVCO sizes actuators on an 80 psi air supply, but torque values are provided for other air supply pressures as well. Modifications can be made to the actuators to achieve closing speeds as fast as 0.1 seconds. Actuators with stainless steel body and end caps are available when automation is needed in corrosive environments.
