100 Series – Economy 1 Piece, Reduced Port Ball Valve

Size:

1/4” through 2”

Pressure Rating:

1000 WOG

Ends:

NPT

Body Materials:

316 Stainless Steel

Ball & Stem Materials:

316 Stainless Steel

Seat Materials:

Teflon

Category:

Description

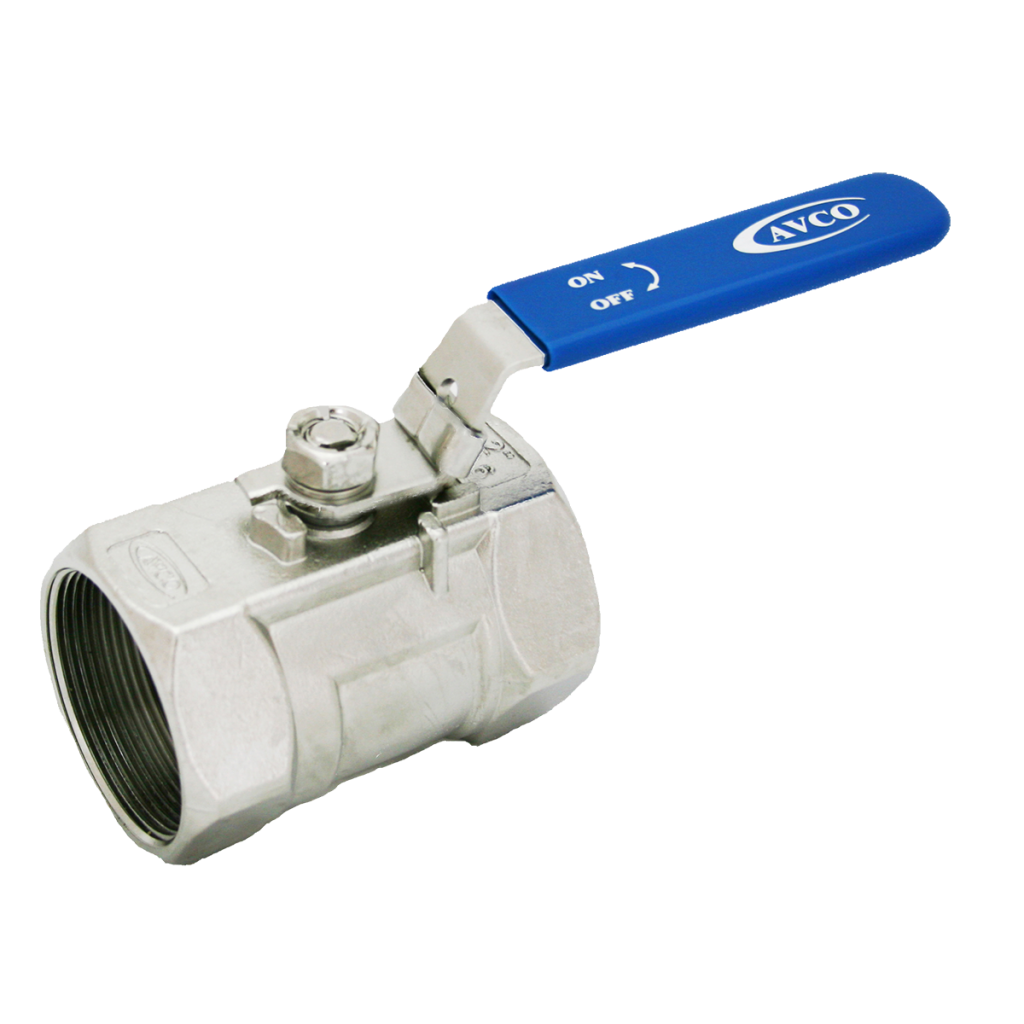

The AVCO 100 series ball valve is an economy 1-piece ball valve in cast 316 stainless steel (CF8M) with NPT ends that meet ASME B1.20.1. It is a reduced port valve that provides reliable performance at the lowest price points. The 100 Series is available in sizes ¼” through 2” and up to 1000 WOG pressure and temperatures up to 400°F. The valves come standard with a locking lever handle to prevent unwarranted use. A blow-out proof stem is standard. The valves come with 15% glass filled TFE seats and TFE seals to provide consistent performance in a wide range of applications including the chemical, hydraulic, food processing, water, oil and gas industries.
